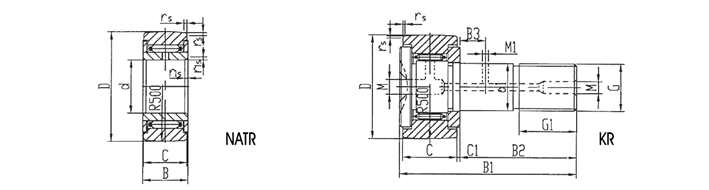

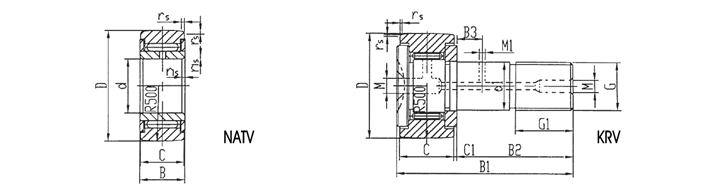

• 轻系列带螺栓滚轮滚针轴承外形尺寸

轴承型号		D	d1	C	B1	B2	B3	G	G1	M	M1	C1	rsmin
KR	KRV
KR22	KRV22	22	10	12	36	23	-	M10x1.25	12	4	-	0.6	0.3
KR22A	KRV22A	22	10	12	36	23	-	M10x1	12	4	-	0.6	0.3
KR26	KRV26	26	10	12	36	23	-	M10x1.25	12	4	-	0.6	0.3
KR26A	KRV26A	26	10	12	36	23	-	M10x1	12	4	-	0.6	0.3
KR30	KRV30	30	12	14	40	25	6	M12x1.5	13	6	3	0.6	0.6
KR32	KRV32	32	12	14	40	25	6	M12x1.5	13	6	3	0.6	0.6
KR35	KRV35	35	16	18	52	32.5	8	M16x1.5	17	6	3	0.8	0.6
KR40	KRV40	40	18	20	58	36.5	8	M18x1.5	19	6	3	0.8	1.0
KR547	KRV47	47	20	24	66	40.5	9	M20x1.5	21	8	4	0.8	1.0
KR52	KRV52	52	20	24	66	40.5	9	M20x1.5	21	8	4	0.8	1.0
KR62	KRV62	62	24	29	80	49.5	11	M24x1.5	25	8	4	0.8	1.0
KR72	KRV72	72	24	29	80	49.5	11	M24x1.5	25	8	4	0.8	1.0
KR80	KRV80	80	30	35	100	63	15	M30x1.5	32	8	4	1.0	1.0

• 重系列带螺栓滚轮滚针轴承外形尺寸

轴承型号		D	d1	C	B1	B2	B3	G	G1	C1	rsmin
KR	KRV
KR19 10	KRV19 10	19	10	11	34	22	-	M10x1.25	12	0.5	0.3
KR240 12	KRV24 12	24	12	14	41	26	-	M12x1.5	14	0.5	0.3
KR30 14	KRV32 14	32	14	17	48	30	7	M14x1.5	16	0.5	0.6
KR37 16	KRV37 16	37	16	20	56	35	8	M16x1.5	18	0.5	1
KR42 20	KRV42 20	42	20	22	65	41	10	M20x1.5	21	1	1
KR47 24	KRV47 24	47	24	25	75	48	11	M24x1.5	25	1	1
KR58 30	KRV58 30	58	30	32	93	59	14	M30x1.5	30	1	1
KR72 36	KRV72 36	72	36	38	116	76	17	M36x3	41	1	1
KR85 42	KRV85 42	85	42	46	125	87	20	M42x3	46	1	1.5
KR100 48	KRV100 48	100	48	54	156	100	23	M48x3	53	1	1.5
KR110 56	KRV110 56	110	56	61	178	115	-	M56X4	61	1	2
KR125 64	KRV125 64	125	64	69	200	129	-	M64x4	68	1	2
KR140 72	KRV140 72	140	72	76	222	143	-	M72x4	73	2	2.5
